Drilldown With Multiple Attributes

Return several columns from one drilldown, and filter a drilldown on more than one column.

1. Drilling Down to Show Multiple Columns

Often the detail a reader wants spans several columns. Building on the previous example, say that instead of just state we also want city and customerName — all three at once.

Before

After

Step 1: Fetch More Columns in the Drilldown Query

SELECT country, state, COUNT(customerNumber) as numberOfCustomers
FROM [customers.xlsx]
WHERE country=:_harbour_drill_:country:undefined:
GROUP BY country, state
ORDER BY COUNT(customerNumber) DESC

SELECT country, state, city, customerName,
       COUNT(customerNumber) as numberOfCustomers
FROM [customers.xlsx]
WHERE country=:_harbour_drill_:country:undefined:
GROUP BY country, state, city, customerName
ORDER BY COUNT(customerNumber) DESC

Update the query in drilldown mode and click Save.

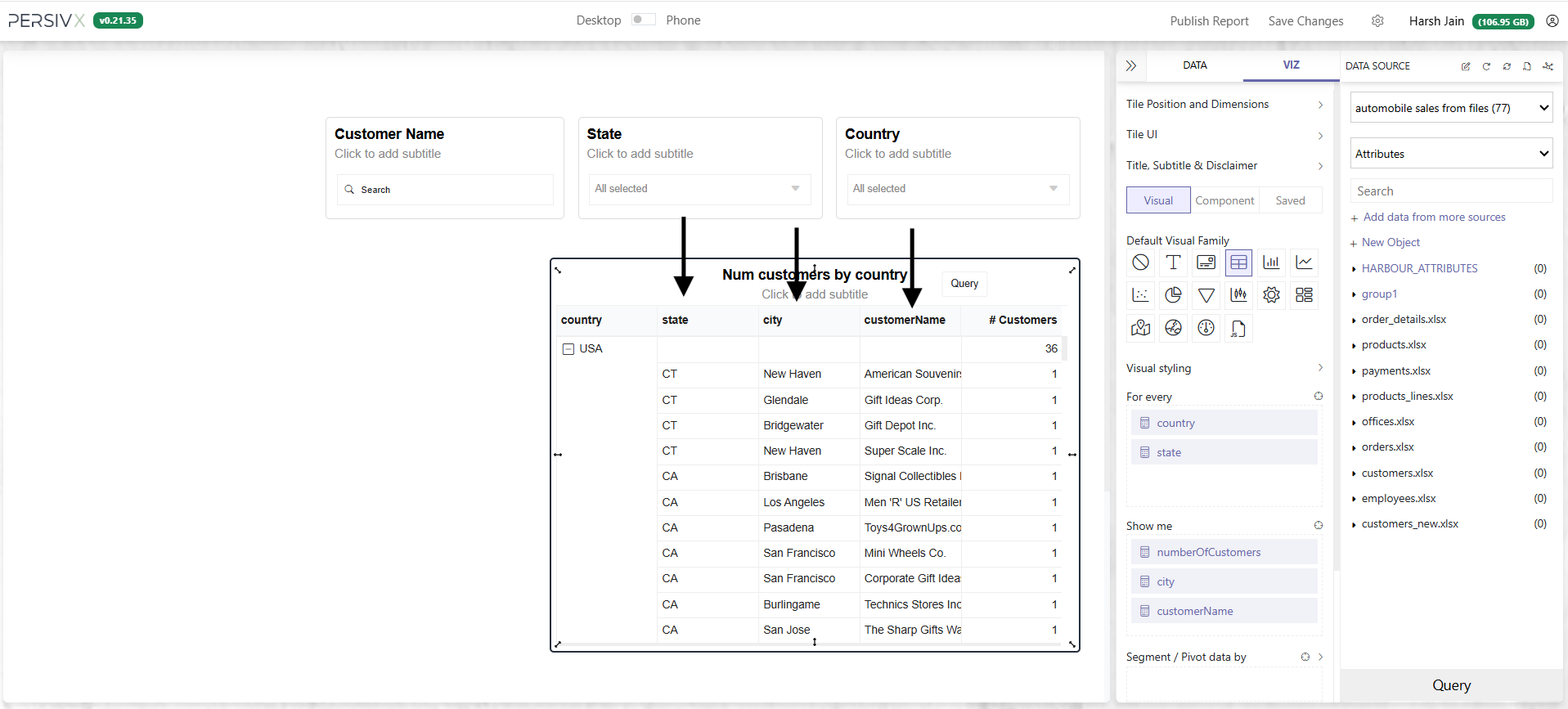

Now when a reader clicks a country, all three columns — state, city, and customerName — are fetched and displayed.

2. Filtering a Drilldown on Multiple Columns

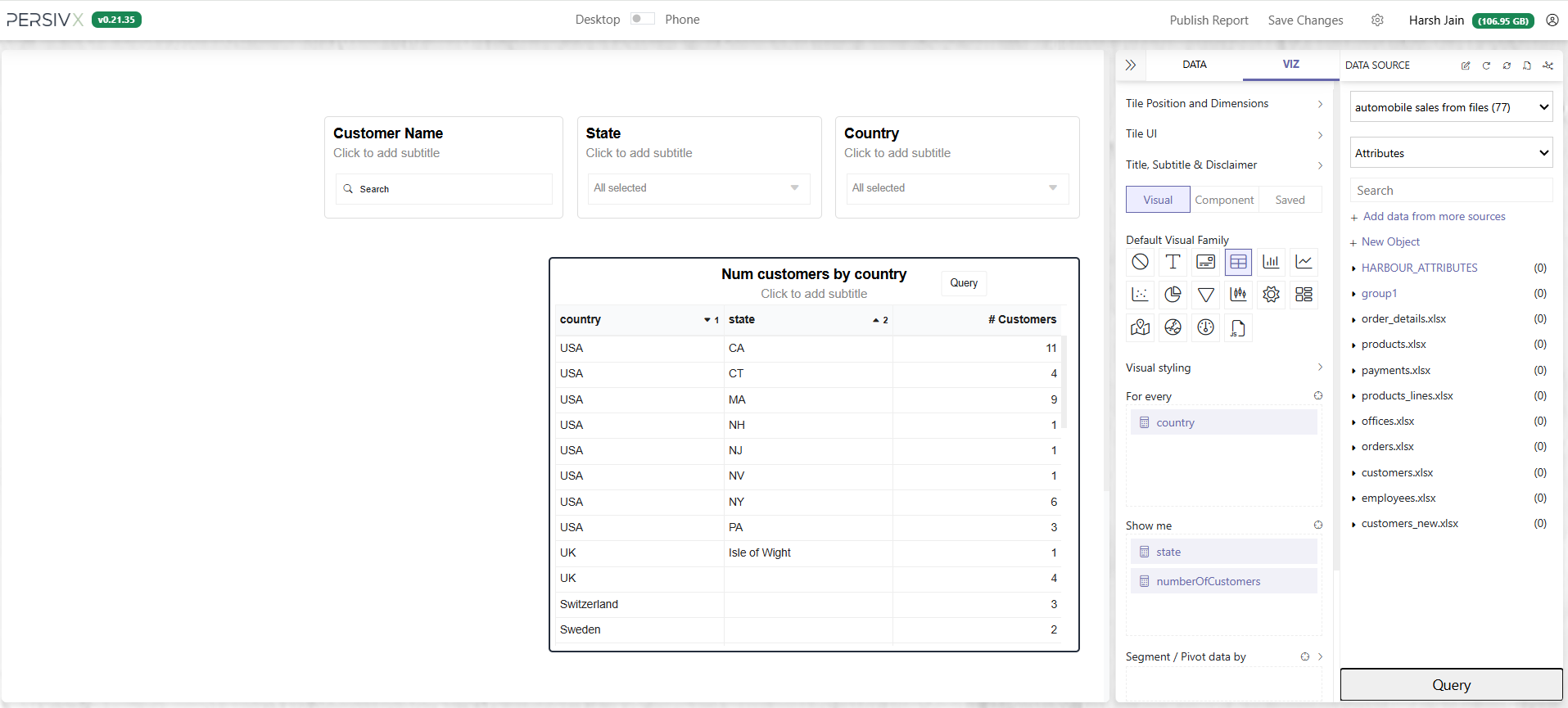

Say the table initially shows country, state, and the number of customers in each state. When a reader clicks a row, the drilldown should show detail by city.

Before

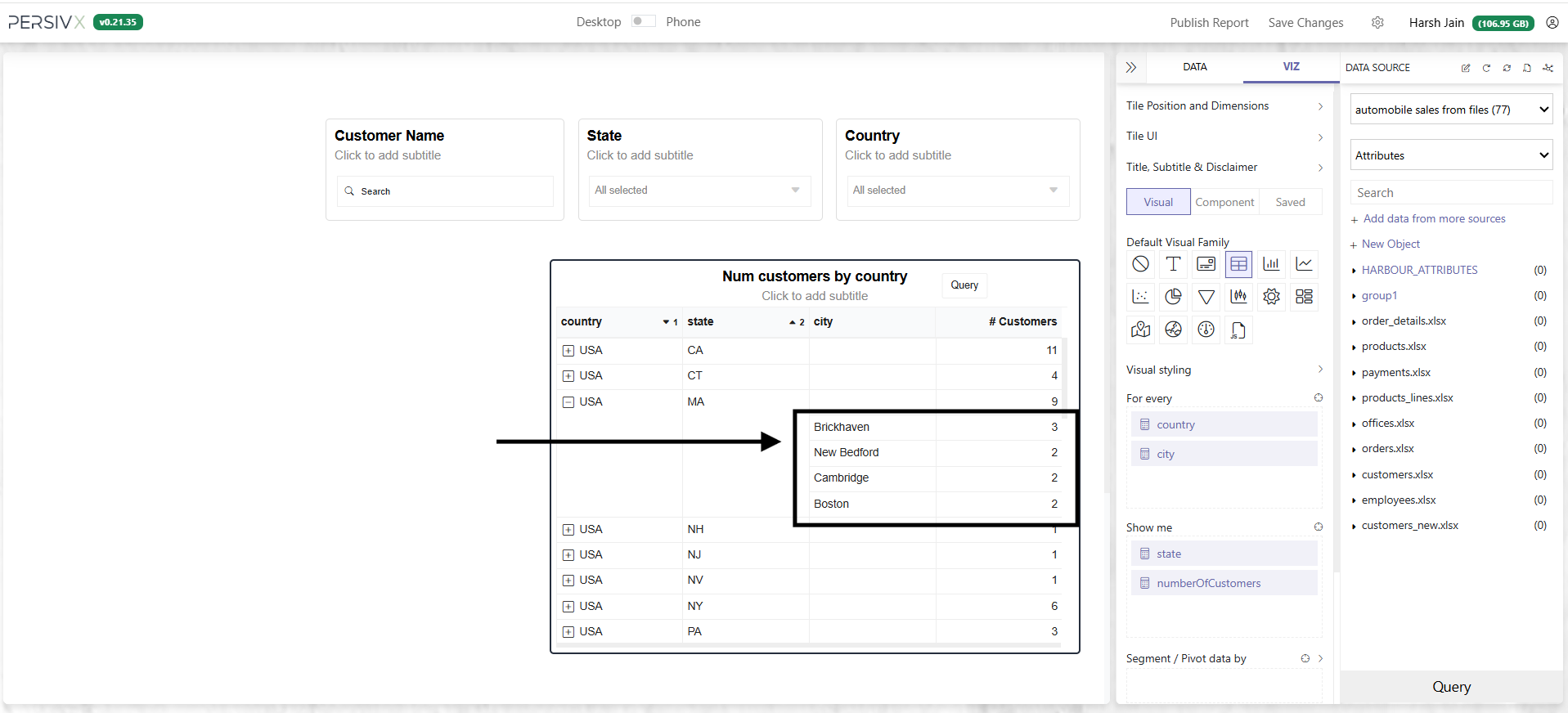

After

Filtering the drilldown on country alone won't work here. The filter has to apply to both country and state, so only the data relevant to the clicked row is fetched.

The chart itself is built with this query:

SELECT country, state, COUNT(customerNumber) as numberOfCustomers
FROM [customers.xlsx]
GROUP BY country, state
ORDER BY COUNT(customerNumber) DESC

So the drilldown query becomes:

SELECT country, state, city, COUNT(customerNumber) as numberOfCustomers
FROM [customers.xlsx]
WHERE country=:_harbour_drill_:country:undefined:
  AND state=:_harbour_drill_:state:undefined:
GROUP BY country, state, city
ORDER BY COUNT(customerNumber) DESC
