Filter Components with Query-Based Visuals

Make filter components drive a visual whose data comes from a query you wrote.

There are three steps:

1. Add the filter components
2. Pass hints in the visual's query
3. Update the visual's filter settings

Step 1: Add Filter Components

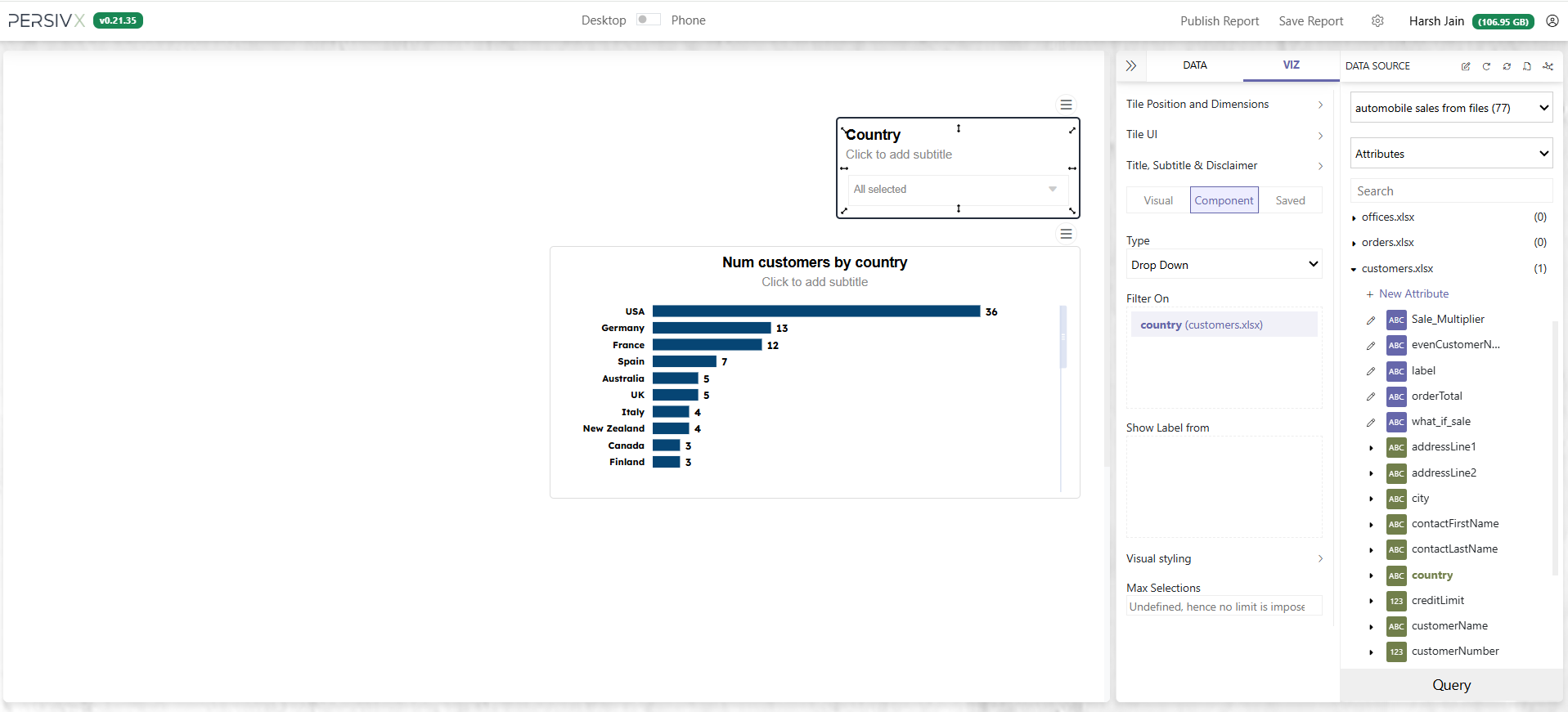

Add a filter component with drag and drop, exactly as in Adding Filters on a Report. Here we start by filtering the table on Country.

Step 2: Add Hints to the Query

The goal is to show only the relevant data. When a reader selects "USA" and "Australia", the visual should show only those two countries. For that, the WHERE clause has to change in real time:

SELECT country, COUNT(customerNumber) as numberOfCustomers
FROM [customers.xlsx]

GROUP BY country
ORDER BY COUNT(customerNumber) DESC

SELECT country, COUNT(customerNumber) as numberOfCustomers
FROM [customers.xlsx]
WHERE country IN ("USA", "Australia")
GROUP BY country
ORDER BY COUNT(customerNumber) DESC

But a reader can select anything, and any number of values — so the WHERE clause has to update in real time. PersivX handles that for you. All you do is tell it where to put the condition:

SELECT country, COUNT(customerNumber) as numberOfCustomers
FROM [customers.xlsx]

GROUP BY country
ORDER BY COUNT(customerNumber) DESC

SELECT country, COUNT(customerNumber) as numberOfCustomers
FROM [customers.xlsx]
WHERE :APPLY_FILTER:country:
GROUP BY country
ORDER BY COUNT(customerNumber) DESC

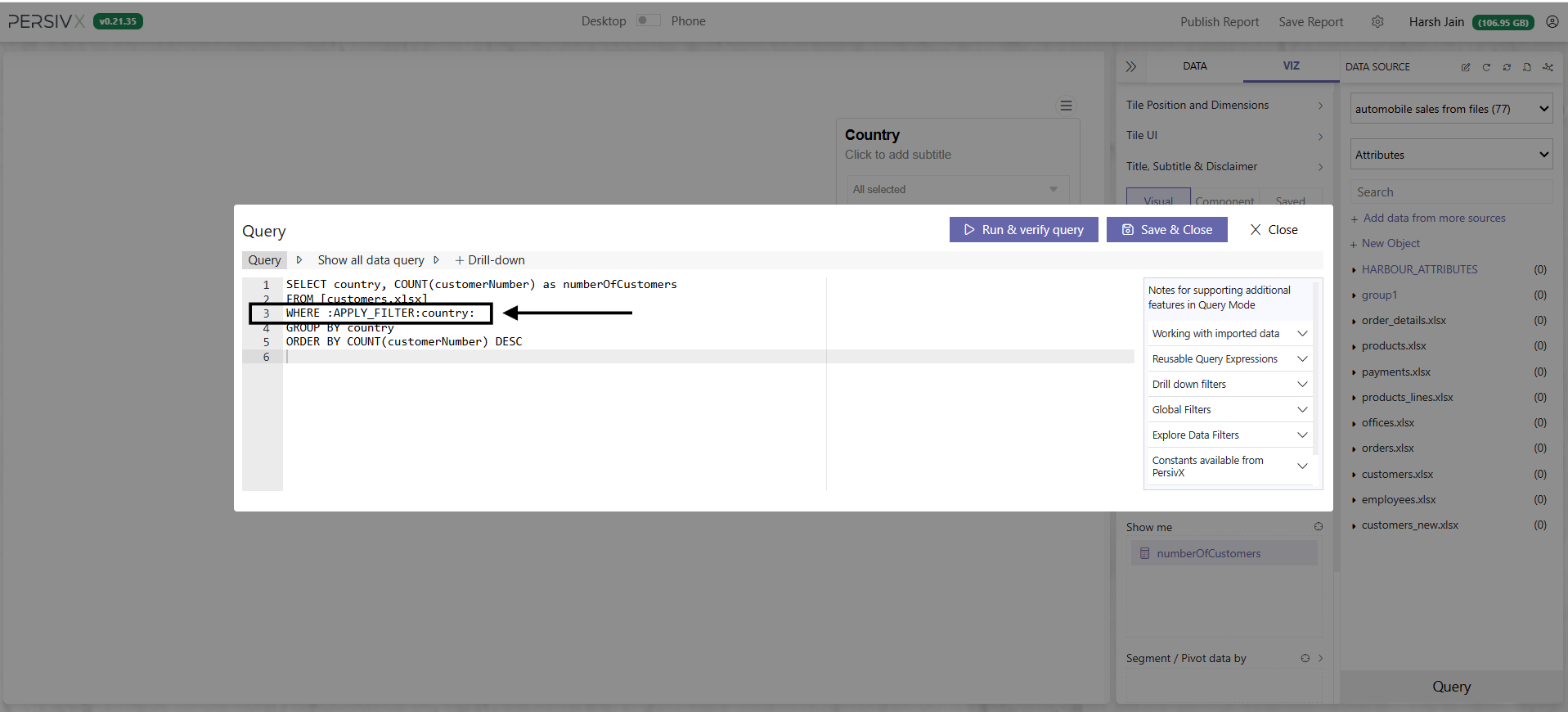

The query now contains an :APPLY_FILTER:country: hint. It tells PersivX that whenever a filter applies to the country column, the WHERE clause should be built at that position — line 3 in this example.

PersivX will now keep the query updated in real time. Update the query on the bar visual, verify it, and click Save.

Step 3: Map Filters to Hints

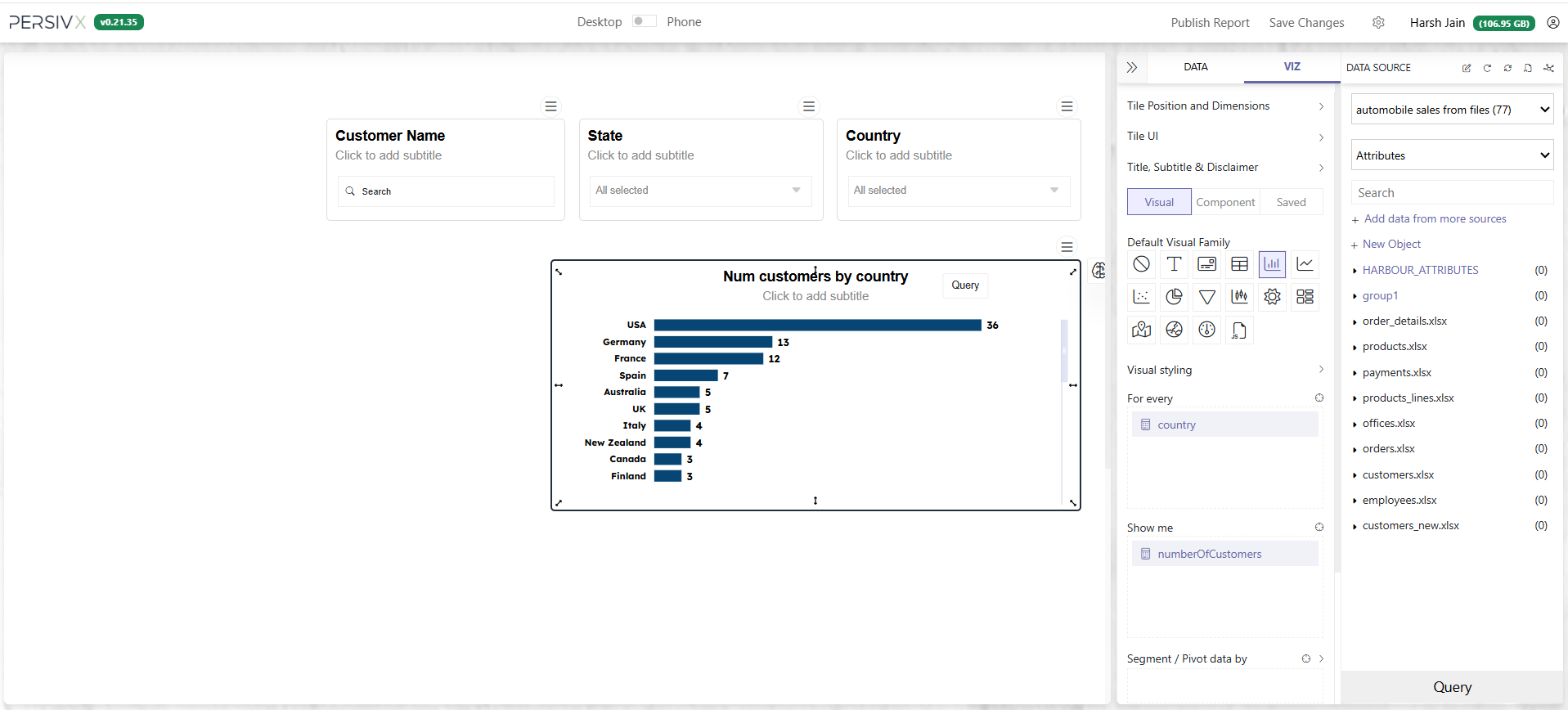

With multiple filters on a report, the query ends up with multiple hints. Say we add two more filters alongside the country dropdown — a dropdown for state and a search bar for customer name.

Add the matching hints to the query:

SELECT country, COUNT(customerNumber) as numberOfCustomers
FROM [customers.xlsx]
WHERE :APPLY_FILTER:country:
GROUP BY country
ORDER BY COUNT(customerNumber) DESC

SELECT country, COUNT(customerNumber) as numberOfCustomers
FROM [customers.xlsx]
WHERE :APPLY_FILTER:country: AND :APPLY_FILTER:state: AND
      :APPLY_FILTER:customerName:
GROUP BY country
ORDER BY COUNT(customerNumber) DESC

Finally, tell PersivX which hint each filter component drives:

• The country filter updates :APPLY_FILTER:country:
• The state filter updates :APPLY_FILTER:state:
• The customerName filter updates :APPLY_FILTER:customerName:

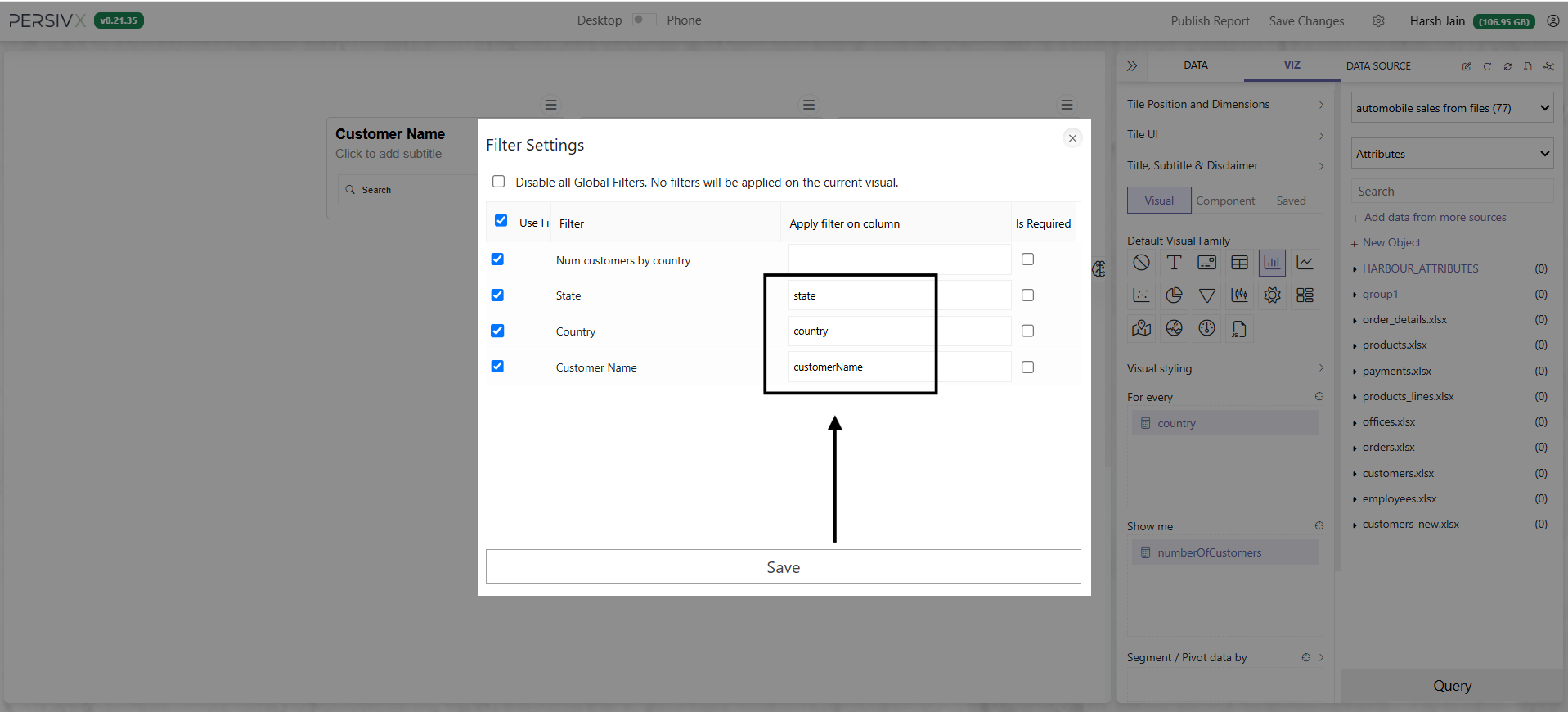

Do this in the visual's filter settings:

1. Open the filter settings
2. Map the hints
3. Click Save
4. Update the chart with the Query button at the bottom right

Update only the fields you need and leave the rest as they are.

All Set

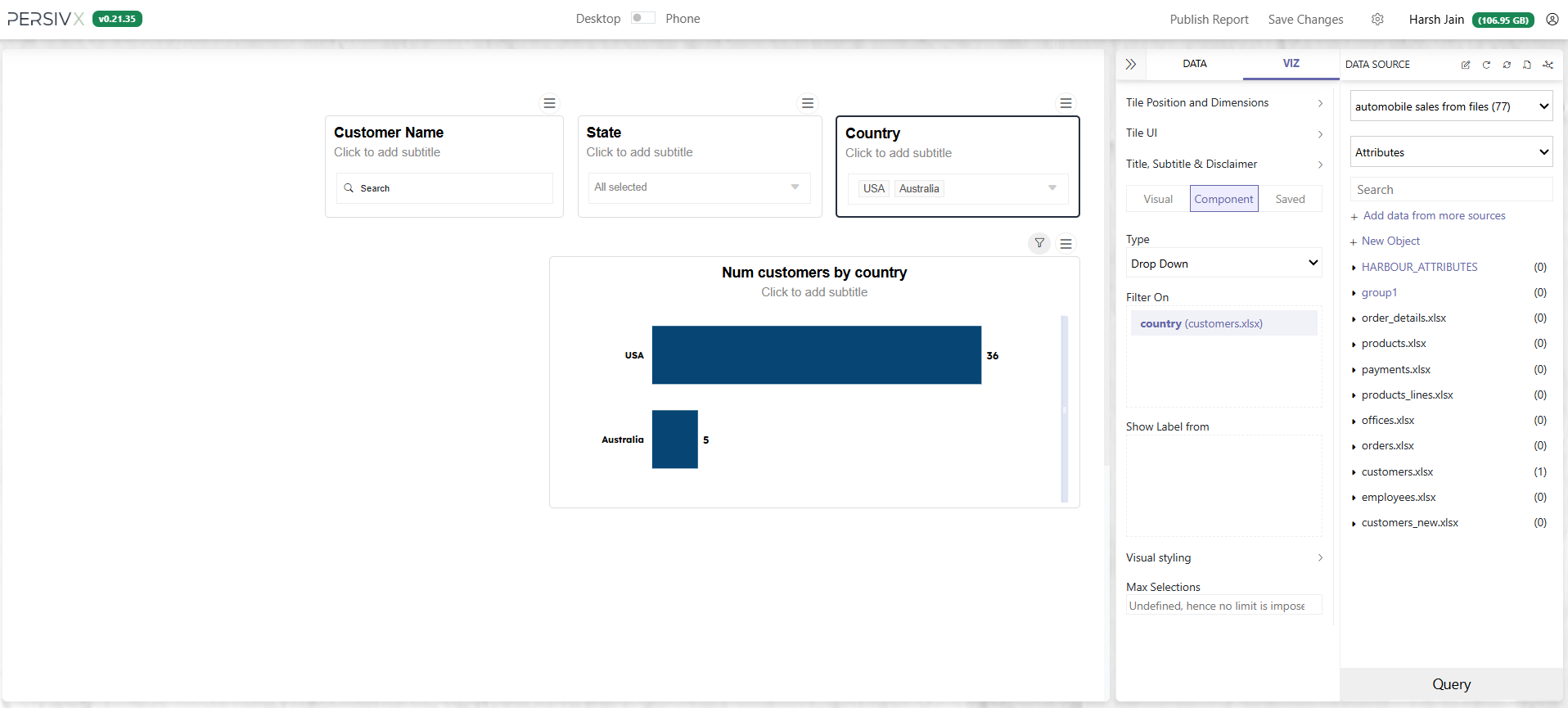

Whenever a reader interacts with a filter component, PersivX rewrites the query and shows only the relevant data. Any number of filter components can be added — all that is required each time is to pass a hint to the query and map the component to it.

Important Points to Remember

The Same Hint May Be Needed More Than Once

In a complex query, one filter may need to apply in several places — you must add the hint to every CTE and subquery involved.

For example, when showing customer details for the top 3 customers, the same hint appears in both the WITH clause and the main query, because the filter needs to update both:

WITH topCustomersIn2004 AS (
  SELECT customerNumber, SUM(orderTotal) as netTotal
  FROM orders
  WHERE year = 2004 AND :APPLY_FILTER:country:
  GROUP BY customerNumber
  ORDER BY SUM(orderTotal) DESC
  LIMIT 3
)
SELECT customerNumber, customerName, country, state, addressLine1, zipCode
FROM customers
WHERE :APPLY_FILTER:country: AND customerNumber IN (
  SELECT customerNumber
  FROM topCustomersIn2004
)

If a Filter Isn't Updating a Visual

There are only two possible causes:

• The query was not updated with the hint
• The filter component was not mapped to the correct hint in Filter Settings
